DS 520 Compact

Dough Sheeters

Butler Table Top Dough Sheeters are engineered with powerful motors and a unique two-way pressing mechanism that ensures smooth rolling without tearing the dough, while maximizing efficiency. Built with an integrated safety shield, they deliver safe, reliable, and hassle-free operation. All food-contact parts are made of stainless steel or specially plated materials, meeting the highest hygiene standards. Compact yet robust, these sheeters are ideal for bakeries, hotels, restaurants, and canteens, providing consistent results every time.

Key Features

Model: DS 520 Compact
Conveyor Table Length(mm): 720
Gap between Rollers (mm): 1-40
Voltage: 120/220V，50/60Hz
Remarks: 133 rpm / Roller length 514 mm
Power: 0.4（kw）
Weight: 102 kg
Dimensions (W x D x H): 818 x 1560 x 545 mm
Dimensions without trays Pulled-out (W x D x H): 816 x 592 x 695 mm

User Manual

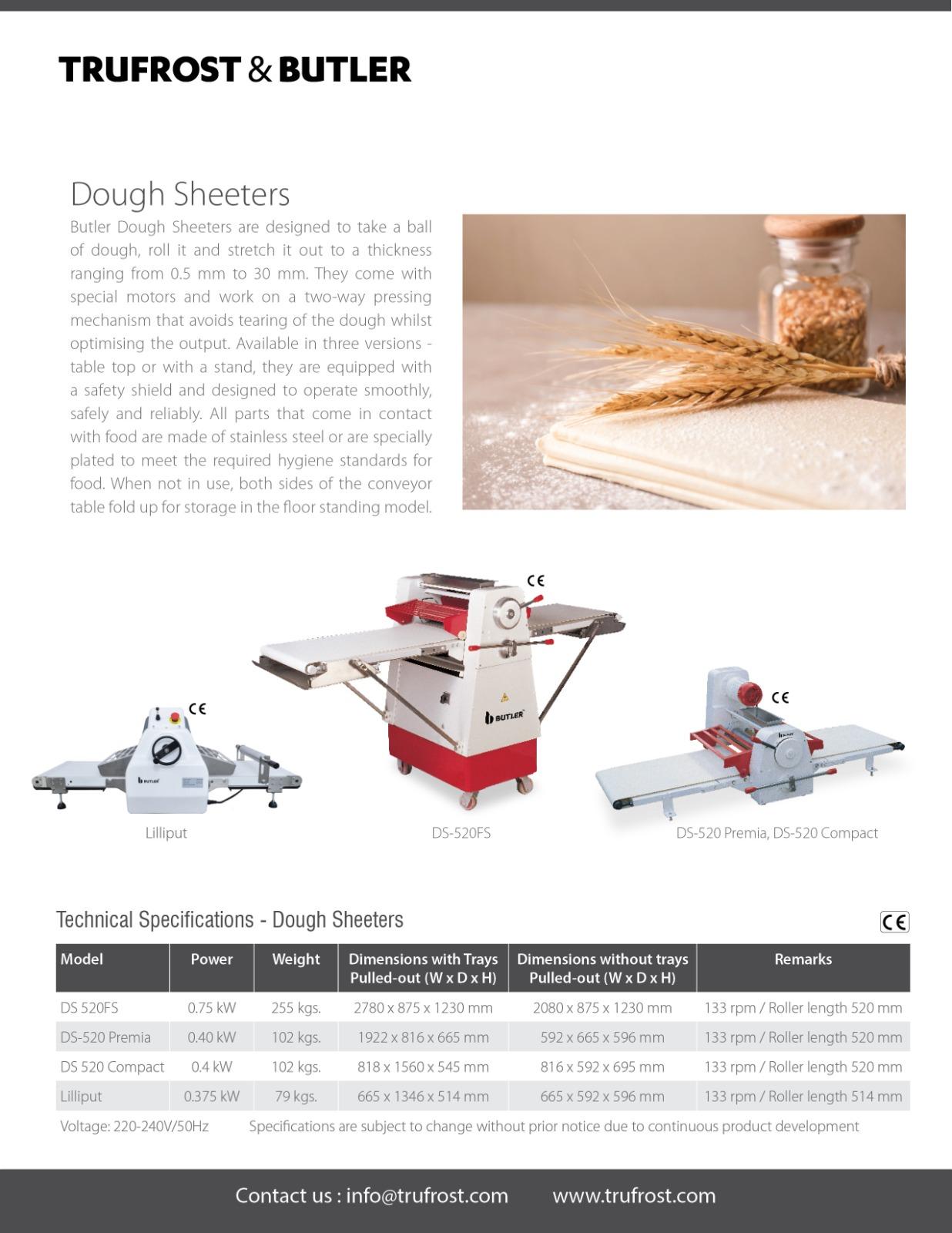

View Flyer
